AMSOIL MOTOR OILS (10,000 miles / 6-month)

AMSOIL OE MOTOR OILS (OEM drain intervals)


PowerCOre Air Filters

PowerCore ® Air Filters


AMSOIL offers premium air filters that utilize PowerCore™ filtration technology for Ford 6.0L Diesel PowerStroke™ and GM H2 Hummer 6.0L Vortec™ applications. The rugged structure of PowerCore™ filters features an innovative, layered, fluted filter media, which allows air to enter an open flute while forcing it out an adjacent flute, allowing only clean air into the engine. Dirty air is effectively filtered and cleaned in only one pass through the media.

See Retail Pricing Information OR Request a Quote From Us

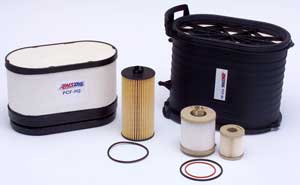

Filters include:

PCF60 - PowerCore® Air Filter for Ford 6.0L Diesel Powerstroke™ Application
PCFH2 - PowerCore® Air Filter for H2 Hummer 6.0L Vortec™ Application
PCF73 - PowerCore® 7.3L PowerStroke Filter Replacement Cartridge
P548070 - Freightliner M-2 - Primary Application
P544432 - Freightliner M-2 - Secondary Application
P606121 - John Deere 6020 Series - Primary (AL150288)
P606119 - John Deere 6020 Series - Secondary, 4 Cylinder (AL119839)
P606120 - John Deere 6020 Series - Secondary, 6 Cylinder (AL150285)
FFK60 - Fuel Filter for Ford 6.0L Diesel Powerstroke™ Application

SDF88 - SDF Oil Filter for Ford 6.0L Diesel Powerstroke™ Application



More Power in PowerCore®
In July 2004 AMSOIL introduced new PowerCore air filters for Ford 6.0L Diesel PowerStroke™ and H2 Hummer 6.0L Vortec™ engines. The rugged structure and fluted media construction of these PowerCore filters provide increased contaminant holding capacity, more efficiency and eliminate media movement.

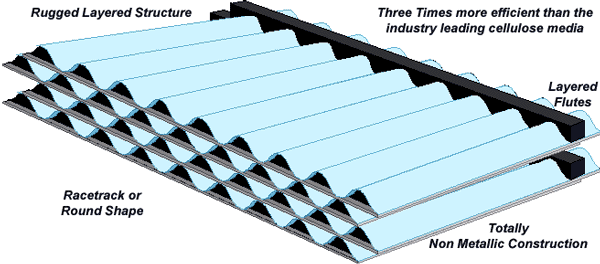

PowerCore Technology
Donaldson PowerCore air filters are widely known in the heavy-duty market for being reliable, premium products. Their flawless repuation and proven performance make Donaldson filters a perfect match for AMSOIL.

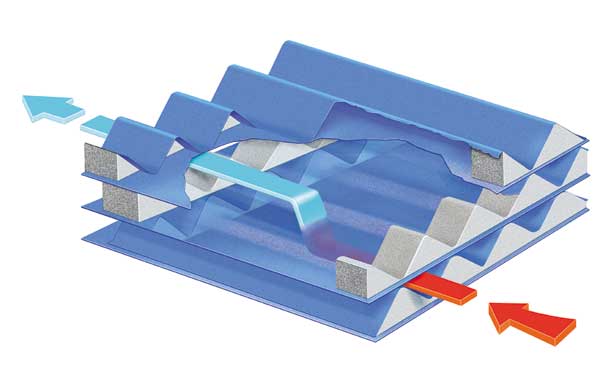

In filters featuring PowerCore technology, the media is formed into flutes. These flutes are layered to give tight, rugged structure to the filter. The fluted channels are alternately sealed allowing air to enter through an open flute and forcing it to exit out an adjacent flute. Dirty air travels in and is filtered in one pass through the media.

Superior Performance
The superior performance of the PowerCore air filtration products for Ford 6.0L PowerStroke Diesels and H2 Hummer 6.0L Vortecs has prompted AMSOIL to expand its offering of Donaldson filtration products to include the entire line of PowerCore air filters. New primary and safety PowerCore filtration products are available for John deere and Freightliner applications, as well as a new air induction system for Ford 7.3L PowerStroke Diesel trucks.

See the new 7.3L PowerStroke Air Induction System (PCIS73)

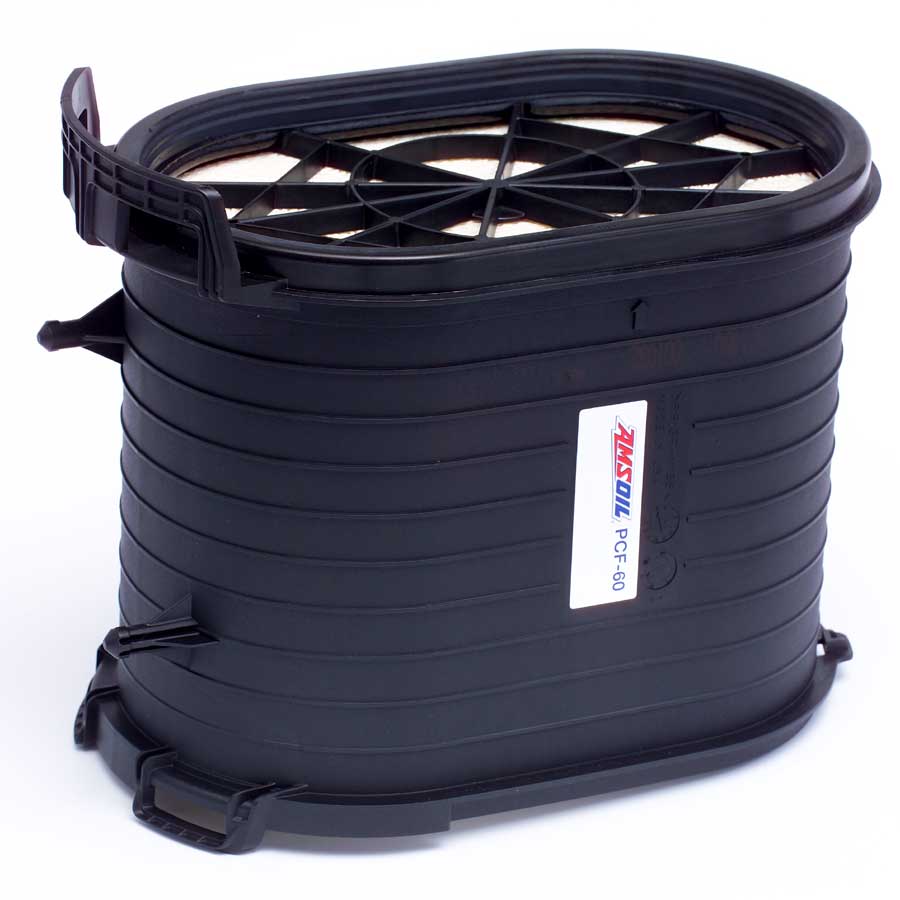

AMSOIL PCF-60 PowerCore ® Technology Air Filter for Ford 6.0L Diesel PowerStroke™ Applications (PCF60, SDF-88, FFK-60)
Click for larger image 2003/2004 Ford Excursion w/6.0L Turbo Diesel
2003/2004 Ford Super Duty Pickups w/ 6.0L Turbo Diesel
2003/2004 Ford Vans with 6.0L Turbo Diesel Engine
2003/2004 IHC VT365 (6.0L) Turbo Diesel Engine
AMSOIL PCF-H2 PowerCore ® Technology Air Filter for GM H2 Hummer 6.0L Vortec™ Applications:
2003/2004 GM Hummer H2
AMSOIL FFK-60 Fuel Filter for Ford 6.0L Diesel PowerStroke™ Applications
The AMSOIL FFK60 Fuel Filter incorporates both a primary and secondary filter for maximum fuel cleanliness. The primary 10 micron filter, located in the Horizontal Fuel Conditioning Module (HFCM), performs initial fuel cleansing before sending the clean pressurized fuel to secondary four micron filter, mounted to the oil filter housing.

The secondary fuel filter includes a fuel pressure regulator and an orifice on top of the housing that bleeds air out of the housing and back to the fuel tank. Following its trip through the secondary filter, fuel is returned to the HFCM, where it is either directed to the tank or returned to the primary filter.

AMSOIL SDF-88 Oil Filter for Ford 6.0L Diesel PowerStroke™ Applications
Constructed of a highly efficient synthetic blend media, the AMSOIL SDF88 Oil Filter provides increased engine life and improved filtration efficiency.

The AMSOIL SDF88 is a cartridge-style filter located on the top of the engine. When the filter is removed during servicing, the oil filter housing drain valve automatically opens, draining the oil from the housing to the pan.

The oil filter base of the SDF88 directs oil to the oil filter, engine oil pressure switch (EOP), engine oil temperature sensor (EOT) and turbocharger oil feed. The filter base also includes an anti-drain back check valve, keeping oil in the filter assembly when the engine is shut off.

.

PowerCore™ is a trademark of the Donaldson Company Inc. These filters are manufactured by Donaldson for AMSOIL®.

Advantages to the PowerCore™ Filters
Premium Air Filter Construction
Less Restriction with Straight-Through Airflow
Additional Advantages to the PowerCore™ Filters

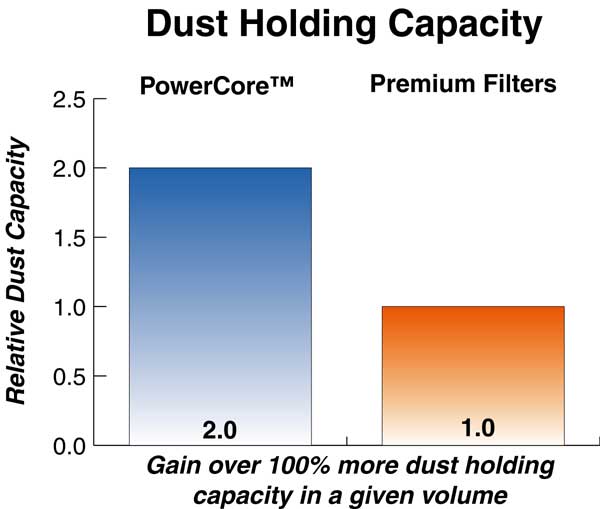

  • Increased holding capacity per volume
  • Three times more efficient than the industry leading cellulose element
  • Less restriction
  • Utilizes RadialSeal™ sealing for easy service

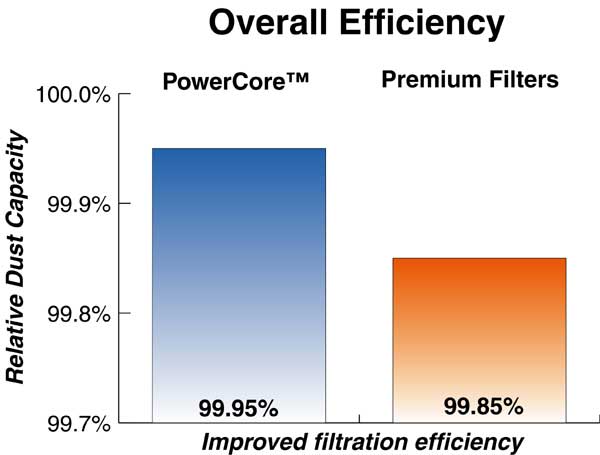

  • 99.95% efficiency
  • Metal-free construction allows for incineration
