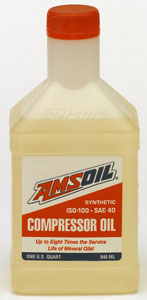

PC Series Synthetic Compressor Oil
|
| PCKQT-EA : 1-Quart Bottle | |
| PCKQT-CA : 1-Quart Bottles (case of 12) | |
| PCK05-EA : 5-Gallon Pail | |
| PCK55-EA : 55-Gallon Drum | |
| PCK27-EA : 270-Gallon Tote |
Compressor Oil Cross Reference Guide (68k PDF)
PRODUCT DESCRIPTION
AMSOIL Synthetic PC Series Compressor Oils are made from high quality, shear stable synthetic base oils. PC Series oils provide long compressor life through reduced component wear, corrosion protection, water resistance and lubricant breakdown resistance. These oils reduce maintenance costs by extending drain intervals and lowering labor and used product disposal requirements.
AMSOIL Synthetic Base Oil Technology
AMSOIL's unique formulation of synthetic base oils combine the advantages of esters and polyalphaolefins (PAO's) into one balanced product. The high viscosity indices, low pour points, low volatility and prolonged thermal stability allow for use in a wide operating temperature range. These oils minimize carbon build-up, provide clean performance and exhibit low frictional characteristics. This superior formulation has demonstrated increased operational efficiency, reduced energy consumption and lower operating temperatures.
AMSOIL Compressor Oil Additives - A Thorough System for Top Performance
The anti-foam agents stop unwanted foaming and air entrainment. Corrosion inhibitors prevent rust and corrosion caused by water and process contaminants, and oxidation inhibitors extend lubricant life and prevent carbon formation. The PC Series is fortified with ashless, non-detergent additives designed to increase the length of compressor serviceability.
Stable in the Presence of Water
AMSOIL PC Series exhibit very good hydrolytic stability, and they readily separate from water. This prevents acid formation and unwanted oil/water emulsions. These features allow water to be easily drained from the sump and extends the life of a lubricant.
Safety Advantage
AMSOIL PC Series Compressor Oils have higher flash, fire and auto-ignition points than competitive petroleum oils. Also, their resistance to carbon formation and the ashless additive system minimize the incidence of deposits acting as ignition-promoting hot spots. Although AMSOIL PC Series Compressor Oils have high fire points, they cannot be considered non-flammable.
PERFORMANCE FEATURES
- Anti-foam, anti-wear protection
- Rust and oxidation inhibited
- Suitable for use in rotary screw, vane, centrifugal and reciprocating compressors
- Combines advantages of ester and PAO technology
- Excellent compatibility with components and other oils
APPLICATION RECOMMENDATION
The manufacturer's recommended viscosity grade of AMSOIL PC Series Oils is recommended for use in single and multi-stage rotary screw, vane, centrifugal and reciprocating compressor crankcases and cylinders, vacuum pumps and other compressor applications. In addition, the correct viscosity may be used in light duty gear and bearing applications, blowers, pumps and hand-held pneumatic tools.
- PC Series Synthetic Compressor Oils are recommended for use in a wide temperature range, from 20°F above the pour point to 275°F discharge temperature.
- The PC Series may be used up to 8000 hours for many compressor applications.* This drain interval is subject to operating conditions and maintenance practices. Monitoring by oil analysis at 500-hour intervals is recommended.
- PC Oils are compatible with petroleum oils, most synthetic oils,** and almost all seals, paints and materials commonly used in compressors. It is suggested that the compressor be thoroughly drained and cleaned if warranted, and the filter be changed prior to filling with the new lubricant. Cleaning should be done in accordance with manufacturer's recommendations. Consult AMSOIL technical department where further recommendations are needed.
AMSOIL PRODUCT COMPATIBILITY
PC Series Compressor Oils are not recommended for "breathing air" or refrigeration compressors; they are also not recommended for use with poly carbonate plastic that is not metal covered, PVC plastic, butyl, ethylene-propylene and SBR rubber.
The following process gases are suitable for use with PC Series Compressor Oils: nitrogen, hydrogen, helium, carbon monoxide, carbon dioxide (dry), ethylene, methane, propane, butane, propylene, butylene, natural gas, benzene, butadiene, furnace (crack gas), hydrogen sulfide (dry), sulfur hexafluoride, synthetic gas, sulfur dioxide.
AMSOIL PRODUCT AVAILABILITY
AMSOIL PC Series Compressor oils are available in 5-gallon pails, 55-gallon drums, 275-gallon totes and bulk quantities.
AMSOIL Industrial Lubricants are stocked in Superior, Wisconsin and in select regional distribution centers throughout the United States and Canada.
Typical Technical Properties
| Synthetic PC Series Compressor Oils | PCH ISO 32 SAE 10W |
PCI ISO 46 SAE 20 |
PCJ ISO 68 SAE 30 |
PCK ISO 100 SAE 40 |
PCL ISO 150 SAE 50 |
| ISO VG - ASTM D-2422 | 32 | 46 | 68 | 100 | 150 |
| VK 100°C - ASTM D-445 | 6.2 | 7.6 | 10.3 | 13.6 | 17.9 |
| VK 40°C - ASTM D-445 | 33.1 | 43.7 | 67.8 | 100.5 | 148.4 |
| Viscosity Index - ASTM D-2270 | 137 | 142 | 138 | 136 | 134 |
| SPGR - ASTM D-1298 | 0.8393 | 0.8418 | 0.8565 | 0.8550 | 0.8602 |
| Density - ASTM D-1298 | 7.989 | 7.009 | 7.081 | 7.119 | 7.163 |
| Flash Point °C (°F) - ASTM D-92 | 264 (507) | 257 (495) | 258 (496) | 264 (507) | 254 (489) |
| Fire Point °C (°F) - ASTM D-92 | 278 (532) | 272 (522) | 274 (525) | 276 (529) | 274 (525) |
| Pour Point °C (°F) - ASTM D-97 | -53 (-63) | -50 (-58) | -48 (-54) | -45 (-49) | -42 (-44) |
| Four-Ball Wear Test - ASTM D-4172 (40 kg, 1200 rpm, 75° C, 60 min.) | 0.45 | 0.45 | 0.45 | 0.45 | 0.45 |
| Copper Strip Corrosion Test - ASTM D-130 | 1A | 1A | 1A | 1A | 1A |
| Rust Test - ASTM D665 A & B Fresh Water and Synthetic Sea Water | Pass | Pass | Pass | Pass | Pass |
| Foam, ml (ASTM D-892) Sequence I, II, III Test End - and After 10 minutes settling | 0/0/0 | 0/0/0 | 0/0/0 | 0/0/0 | 0/0/0 |
| Demulsibility ASTM D-1401 [oil/water/cuff (minutes)] | 40/40/0 (5) | 40/40/0 (5) | 40/40/0 (5) | 40/40/0 (5) | 40/40/0 (5) |
